Automatic Multiply Fabric Cutting Machine

Automatic Multiply Fabric Cutting Machine

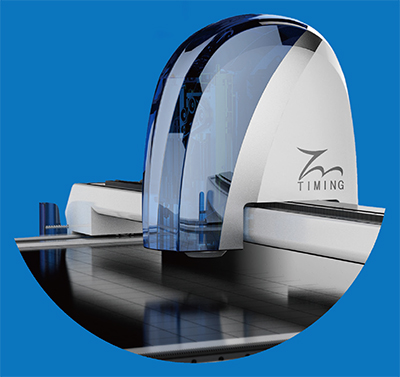

TX Series


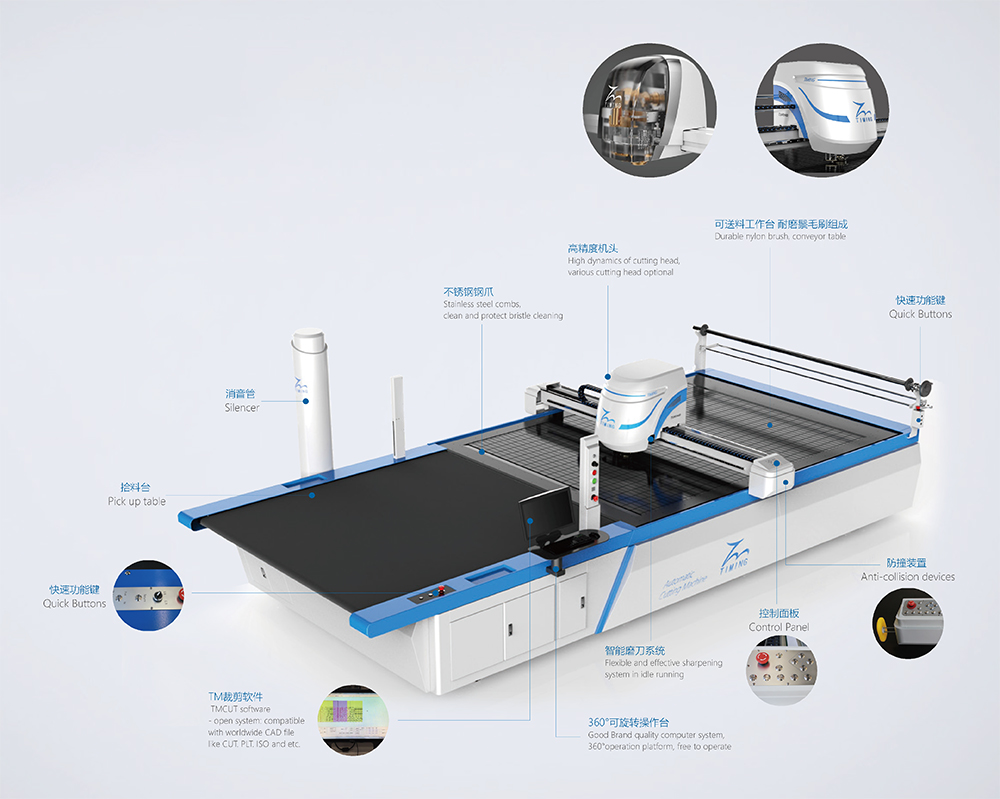

Features

  • Integrated frame design, process by 540° high temperature stress annealing process at 12 hours.
  • The track mounting surface and the support surface of the bristle feeding mechanism, both process by the large CNC gantry milling machine, it ensures the accuracy in installation and improved the stability of the drive components in the state of hight-speed motion.
  • The XY axis adopts precision gear rack drive, which increases the accuracy and stability.
  • One-piece open mold beam, high-strength industrial aluminum extrusion molding, high-precision CNC gantry milling machine, improved stability and beauty.
  • The filter structure of vacuum pump improves the safety and lifetime of the air pump; It also reduces the environmental impact of cutting beds

Specification

Models TX-1825 TX-2025
Cutting Heights 6cm/9cm (after vac-sorb)
Cutting Window Lenght (no limitation)
Width (no wider than the fabric width)
Working Width (Y) 1800mm/200mm
Normal Working Length (X) 2500mm
Normal Pick Up Table Length (X) 2200mm
Electricity Three phase 380v, 50~60Hz
Power Consumption 18KW max
CAD & CAM Connect way Ethrnet communication / USB Flash memory
Max Speed of Blade Working 600rpm/min
Compressed Air 0.55Mpa 160L/min
Max Cutting Speed 60000 mm/min
Acceleration 1~1.2g (N/kg)
Noise Level < 72 dbA

Features:

  • Cutter vibration set with dynamic balance device
  • Sand belt sharpener
  • Auto-adjust grinding pressure
  • Adjustable knife grinding speed
  • Max cutting height up to 6mm/9cm optional
  • Max speed of blade working at 6000rmp/min

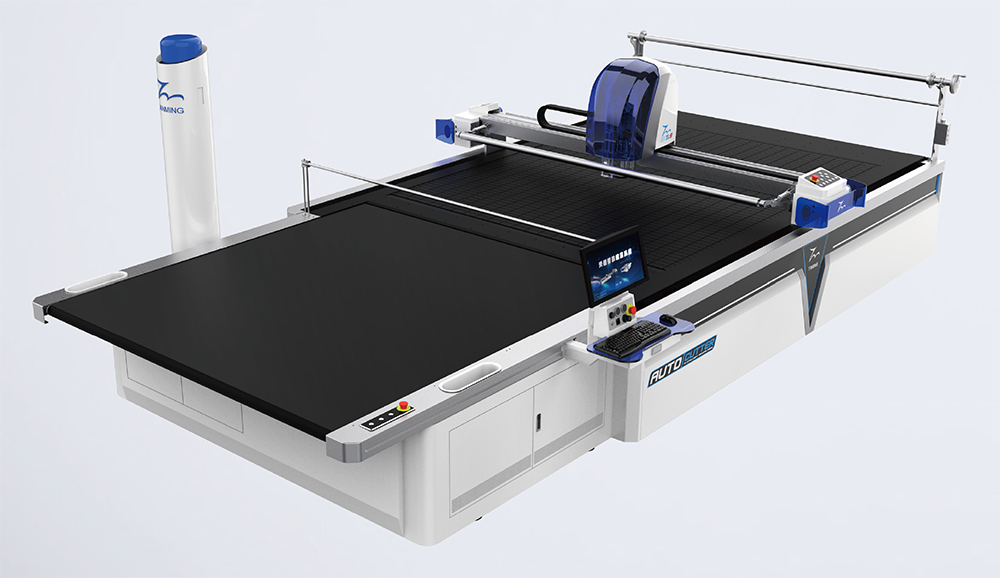

TE Series

Tech Data

Models TE-1725 TE-2025 TE-2225
Max Cutting Height 6cm/ 9cm (after vac-sorb)
Cutting Window Length (no limitation)
width (no wider than the fabric width)
Working Width (Y) 1700 mm / 2000mm / 2200mm
Normal Working Length (X) 2500mm/3300mm optional
Electricity Three phase 280V, 50~60Hz
Power Consumption 18KW max
CAD & CAM Connect way Ethernet communication / USB Flash memory
Max Speed of Blade Working 6000rom/min
Compressed Air 0.55Mpa 160L/min
Cutting Speed max.60000mm/min
Acceleration 0.8~1g (N/ Kg)
Noise Level < 75 dbA

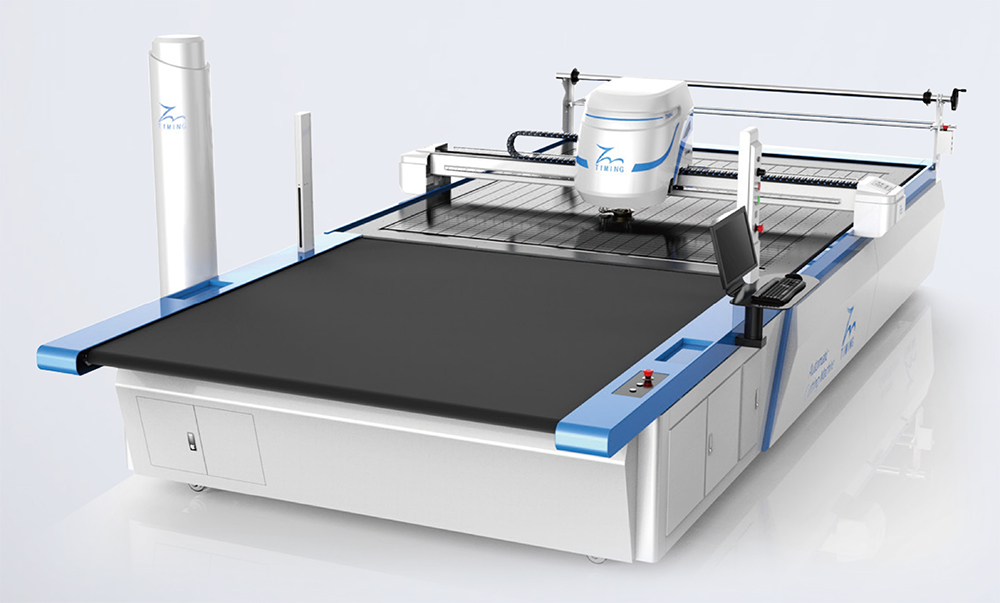

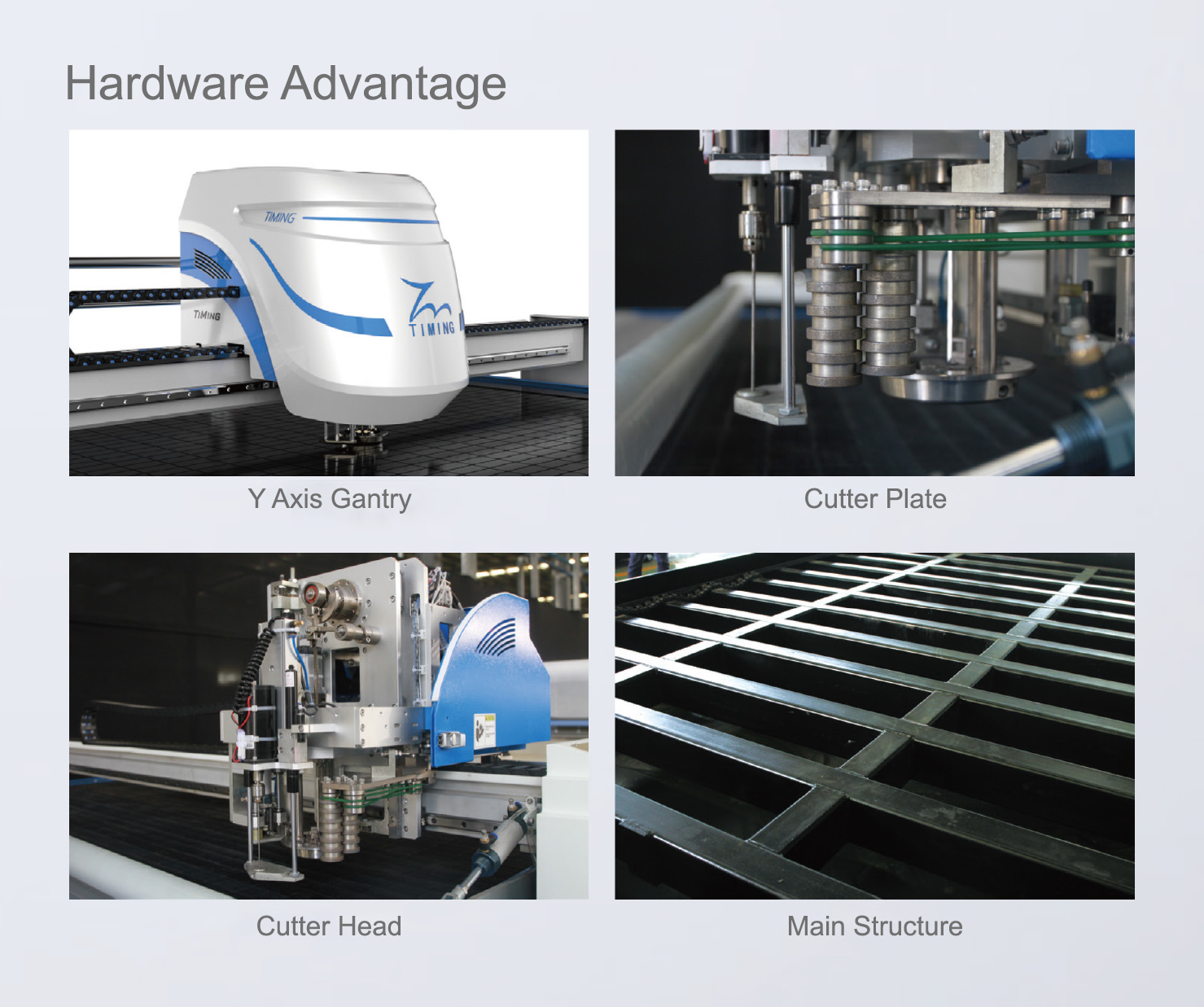

TMCC Series
TMCC Multi Layers Cutter

Tech Data

Models TMCC-1725 TMCC-2025 TMCC-2225
Max Cutting Height 3cm / 5cm / 7cm / 9cm (after vac-sorb)
Cutting Window Length (no limitation)
width (no wider than the fabric width)
Working Width (Y) 1700 / 2000mm / 2200mm
Normal Working Length (X) 2500mm
Electricity Three phase 280V, 50~60Hz
Power Consumption 18KW max
CAD & CAM Connect way 5000rpm/min
Compressed Air 0.55Mpa 160L/min
Cutting Speed max.60000mm/min
Cutting Accurancy < +1mm
Noise Level < 75 dbA
Noise Level < 75 dbA

Features:

  • Own patent cutting software
  • High efficiency, high accuracy
  • Easy operation and better safety
  • User friendly and higher efficiency
  • Intelligent cutting design, ensures the precision

Devices Optional:

  • Air cooling device
  • Double Drill device (Single or Linkage optional)
  • Moving function, that combines the cutter with spreading machines and different table lines
  • Feeding structure of wadding materials
(m) / (dm) 17 20 22
A 1700 2000 2200
B 2710 3010 3210
C 2296 2596 2796
D 2890 3190 3390

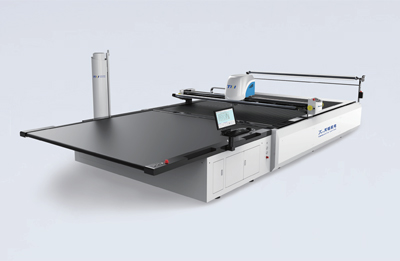

TMCC-2633

  • The main application is large pattern cutting of wider materials.
  • Typical industries are home textile, outdoor tents and etc.
Max Cutting Height 5cm/ 7cm (after vac-sorb)
Working Width (Y) 2600mm
Normal Working Length (X) 3300mm
Normal Working Length (X) 2580

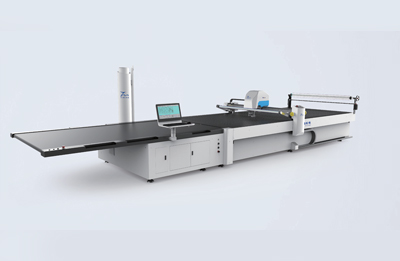

TMCC-1640

  • The main application is small batches of customized production
  • Typical industries are automation, furniture and etc.
Max Cutting Height 5cm/ 7cm (after vac-sorb)
Working Width (Y) 1600mm
Normal Working Length (X) 4000mm
Normal Working Length (X) 3550

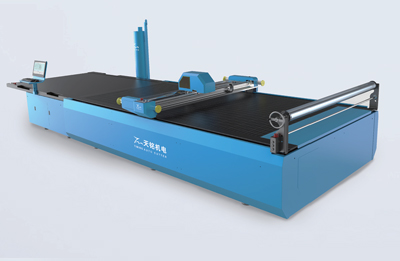

TMCC-1733

  • The main application is small batches of customized production
  • Typical industries are furniture, garment and etc.
Max Cutting Height 5cm/ 7cm (after vac-sorb)
Working Width (Y) 1700mm
Normal Working Length (X) 3300mm
Normal Working Length (X) 2850
